Liposuction Cannula Handles: Fix Handles, Grips and Fittings Explained
Sep
A liposuction cannula handle is the grip that joins a cannula to the suction tubing or to a syringe, and its fitting decides which cannulas it will take. Surgeons hold it for the whole of an infiltration or aspiration pass, so its weight and grip matter by the second hour. Adas Instruments makes three kinds in Sialkot: cannulas with the handle fixed on, a 13 mm threaded adaptor handle, and an aluminium luer lock handle.
The handles themselves sit in our liposuction accessories range, and the one piece versions are in the fix handle cannula category. This guide goes through each type, what it connects to, what it costs, and which one we would buy for which kind of list. It stays with the hardware; for the procedure itself, the NIH StatPearls review of liposuction is a sound starting point.
Key takeaways
- A fix handle cannula costs $55 and has no joint to leak, but every pattern needs its own handle.
- One threaded adaptor handle at $45 serves every threaded cannula on the tray, which is why our $480 full body set is built around it.
- The luer lock super handle is anodised aluminium with a luer lock at both ends, and costs $28.
- Decide the fitting first. A threaded cannula will not go on a luer lock handle, and the reverse is also true.

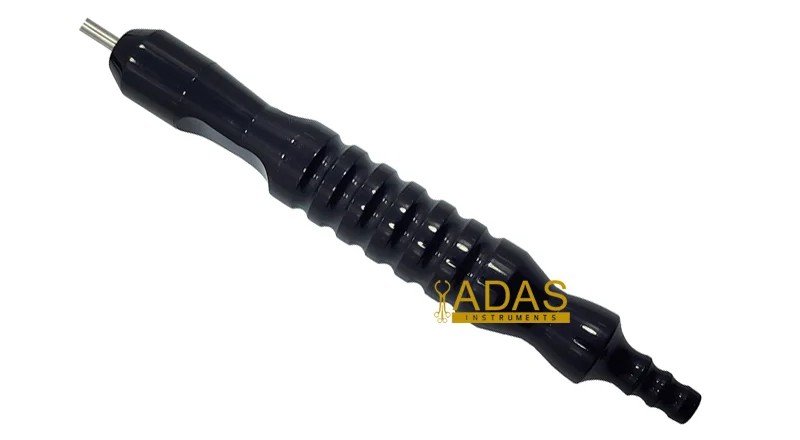

Fix handle cannulas: one piece, no joint
In our catalogue a fix handle is not a separate liposuction cannula handle. The cannula is set permanently into an aluminium handle, and the tail of the handle takes the suction tubing. There is nothing to screw together in theatre and nothing to cross thread with a wet glove.
We make 20 patterns this way, and every one of them is $55, from the spatula and the pyramid to the Becker double basket. The pyramid, for example, runs 3.0 mm to 6.0 mm across and 20 cm to 40 cm long, in plain steel or with a titanium nitride coat.
The cost is storage and spend. A surgeon who uses eight patterns needs eight handles. For a clinic that runs the same two or three patterns every week, that is a fair trade, and it is the handle we would pick there, because a joint that does not exist cannot loosen.

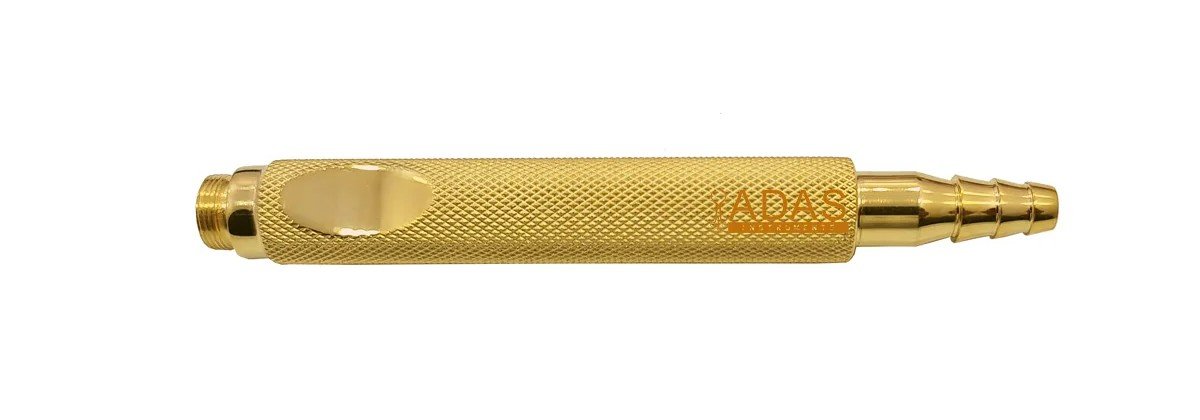

The threaded adaptor handle: one grip, many cannulas
The adaptor handle is 13 mm across, gold plated stainless steel, and knurled along its length. Its internal thread takes any of our threaded cannulas, and the other end keeps a sealed connection to the suction machine. It costs $45 for the threaded adaptor handle.

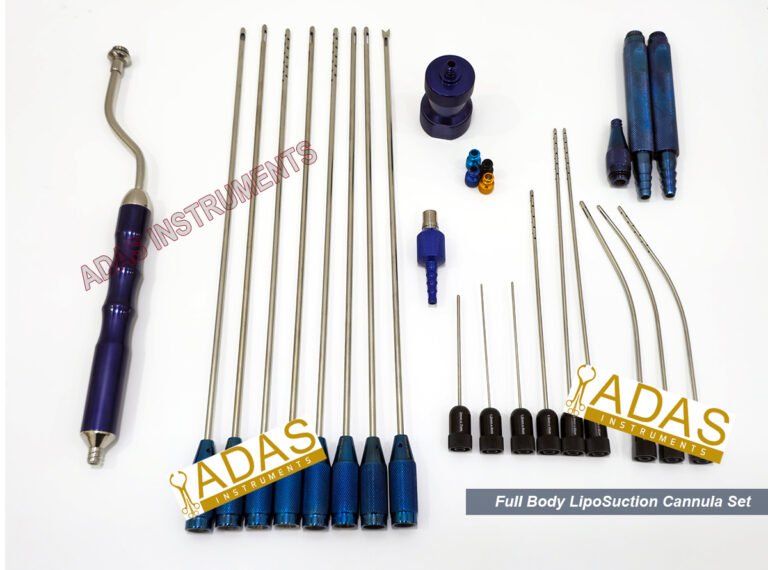

This is the system to choose if the list changes from case to case. One handle, and the cannulas swap on and off it. Our full body liposuction cannula set is built on exactly this: threaded Mercedes and basket cannulas, plus Toledo and accelerator patterns, at 4 mm by 30 cm, with adaptor handles and a large handle for the machine line, for $480.
A thread is also a wear point. Clean and dry the thread, and look at it before the handle goes back in the tray. A suction line that feels weak on a healthy machine is worth checking at this joint first.

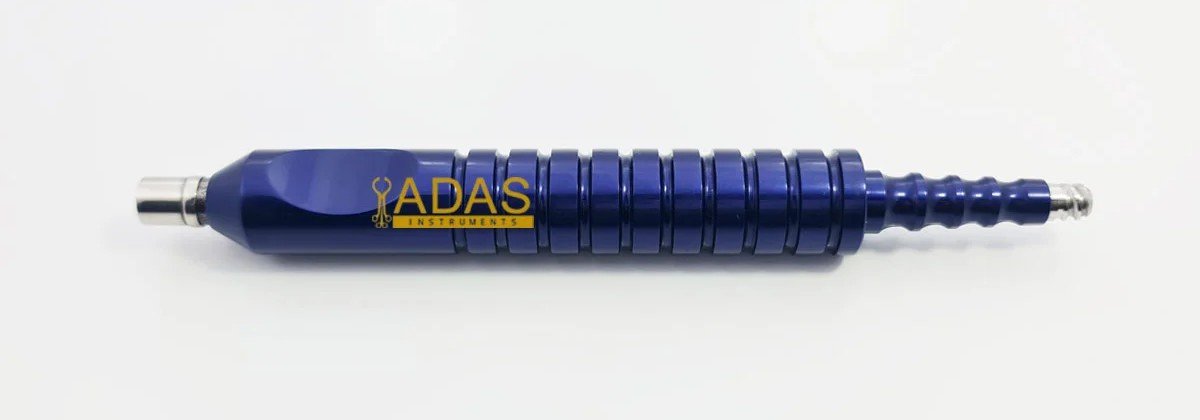

The luer lock super handle for syringe and tumescent work
The super handle is light, anodised aluminium in several colours, with a luer lock at both ends. One end takes the cannula, the other takes the tumescent tubing. At $28, the luer lock super handle is the cheapest liposuction cannula handle we make.
Luer lock is the fitting that syringes and infiltration lines already share with small cannulas, which is why facial trays standardise on it. Our 29 piece facial set ships with a luer lock handle for that reason, and the chin liposuction cannula guide covers that tray in full.
Liposuction cannula handle fittings compared
| Handle | Connection | Material | Price | Best for |
|---|---|---|---|---|
| Fix handle cannula | Cannula fixed in the handle, tubing on the tail | Aluminium handle | $55 | A short list of patterns used every week |
| Threaded adaptor handle | Internal thread for threaded cannulas | Gold plated stainless steel, 13 mm | $45 | Rotating many threaded cannulas on one grip |
| Luer lock super handle | Luer lock at both ends | Anodised aluminium | $28 | Syringe work, tumescent lines, facial cannulas |
Shop liposuction handles direct from the maker
Threaded adaptor handle $45, luer lock super handle $28, and 20 fix handle cannula patterns at $55 each. Wholesale pricing for clinics and distributors, branded or plain.
Match the fitting before you order
The costly mistake is a handle on one standard and cannulas on another. Threaded and luer lock do not mix. Pick the handle standard first, then order every cannula to match it. Each of our cannula pages states its fitting, so the match can be checked before checkout.
Powered handpieces are a third world with their own hub. Our MicroAire type PAL cannulas are listed separately for that reason, and they do not go on any of the handles above.
Grip is the last choice when buying a liposuction cannula handle, and it is partly taste. The adaptor handle is knurled, while the super handle and the fix handles use raised rings. In a wet glove we prefer rings, because they give the fingers an edge to hold against when the stroke is long. Try both if you can before buying a set.
Frequently Asked Questions
How do I choose a liposuction cannula handle for safety?
Start with the fitting. The handle must match the cannula exactly, threaded to threaded or luer lock to luer lock, so the joint seals and cannot work loose. Then check that it autoclaves; Adas Instruments handles are autoclave safe to 134 C.
Which cannula handle styles reduce surgeon hand fatigue?
Lighter handles and a grip that does not slip help most. Our aluminium handles are the lightest we make. A threaded adaptor handle also cuts the number of handles picked up in a case, because the cannulas change on one grip.
Can a threaded cannula go on a luer lock handle?
No. Threaded cannulas need a threaded handle such as our 13 mm adaptor handle, and luer lock cannulas need a luer lock handle or a syringe. Order the handle standard first and match every cannula to it.
What handle suits tumescent infiltration?
For luer lock infiltration cannulas, such as our facial tumescent cannula, the luer lock super handle is the natural fit. It has a luer lock at both ends, one for the cannula and one for the tumescent tubing, and it costs $28.
Is a fix handle cannula better than a separate handle?
It is simpler, not always better. A fix handle cannula has no joint to leak and costs $55, but each pattern needs its own. A separate threaded handle is cheaper when a surgeon uses many patterns in the same case.
